What Is a VMware NFS Datastore? (2025)

A VMware NFS datastore is a file-based shared storage model that lets ESXi hosts use an NFS export across the network as datastore storage. The short answer is this: in the November 17, 2025 context, an NFS datastore offers a different operating model from block-based VMFS; when export path syntax, cluster-wide mount consistency, vmkernel network access, and the choice between NFS v3 and NFS 4.1 are handled correctly, it becomes a practical shared-storage option for many vSphere environments. This guide explains what that means in day-to-day operations.

Quick Summary

Broadcom vSphere API references list NFS and NFS41 as core datastore types.
An NFS datastore follows a file-based shared storage model rather than the block-storage model used by VMFS.
Broadcom KB 402096 says an NFS datastore mount can fail if the export path is missing the leading forward slash (/).
Broadcom KB 318693 says mounting the same remote NFS share multiple times through different IP addresses can break HA behavior.
Broadcom KB 308081 and 415057 show that NFS troubleshooting should include ping/vmkping, vmkernel-port validation, and verification of the real network path to the NFS server.
Broadcom KB 416172 shows that on ESXi 8.x, some NFS 4.1 datastores can fail to remount after host reboot when network readiness timing is wrong.

What Exactly Is an NFS Datastore?
Why Do Teams Choose NFS Datastores?
What Is the Difference Between NFS v3 and NFS 4.1?
How Does an NFS Datastore Work?
What Are the Most Common NFS Datastore Risks?
When Is an NFS Datastore a Strong Choice?
What Are NFS Datastore Best Practices?
First 15-Minute Checklist
Frequently Asked Questions

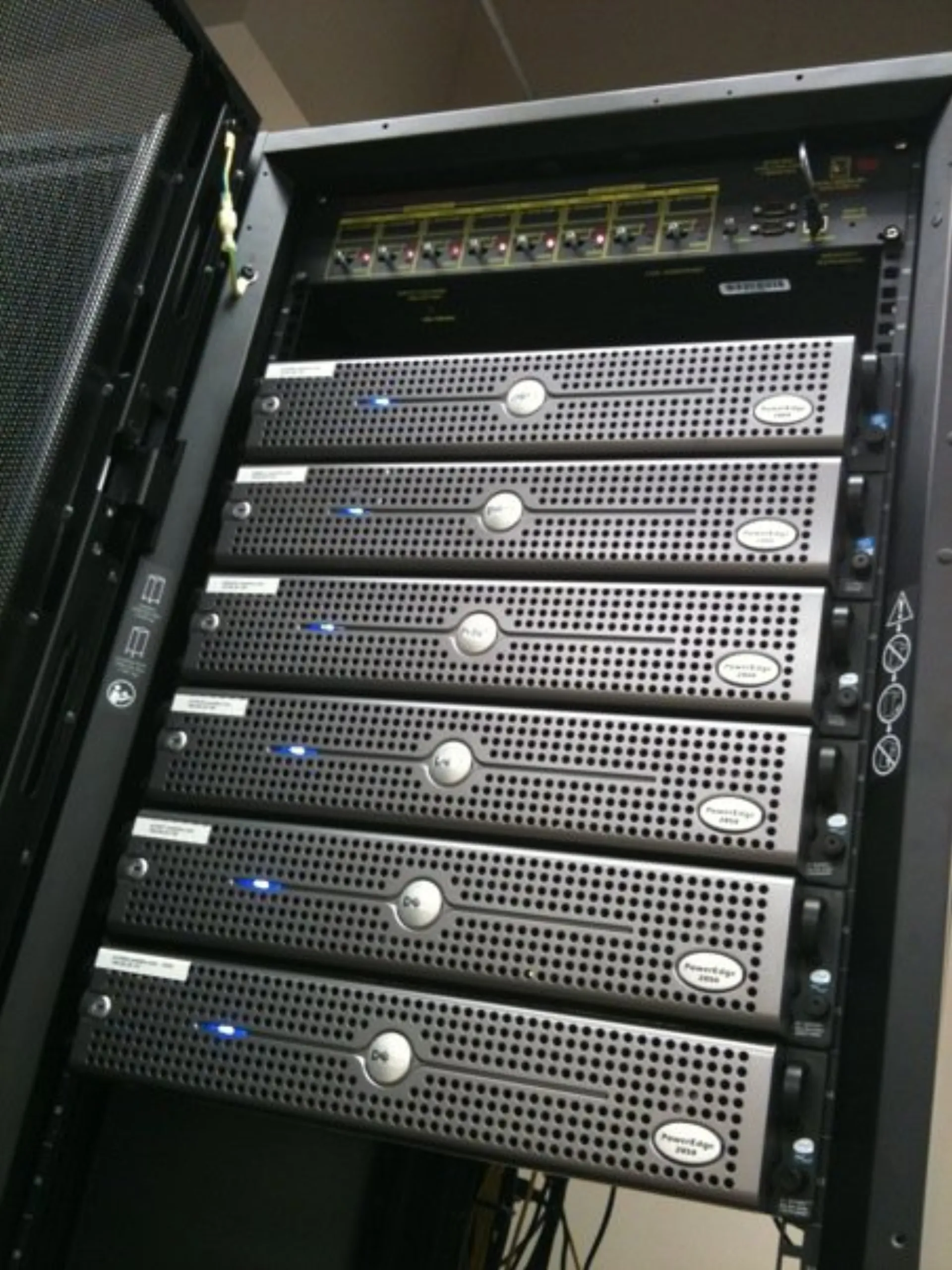

Server room image for a VMware NFS datastore guide

Image: Wikimedia Commons - Datacenter Rack.

What Exactly Is an NFS Datastore?

An NFS datastore is created when an ESXi host mounts an export path from an NFS server and treats that shared file system as datastore storage. In other words, the storage is not presented as a block LUN; it is consumed through a network file-share model.

The main building blocks are:

the NFS server IP address or hostname
the export path
the datastore label
the vmkernel network path used by ESXi

In short, an NFS datastore brings shared file-based storage into vSphere.

Why Do Teams Choose NFS Datastores?

For many teams, NFS offers a simpler storage operating model than block-based datastore approaches. Instead of dealing mainly with LUN presentation, partitions, and VMFS formatting, the operating model shifts toward exports and network reachability.

Common reasons teams choose NFS datastores:

shared storage can feel easier to understand operationally
file-based storage fits some infrastructure teams better
deployment and expansion can be straightforward in NAS-centric environments

That simplicity does not remove risk. Small path or mount inconsistencies can still destabilize the datastore experience across a cluster.

What Is the Difference Between NFS v3 and NFS 4.1?

Broadcom API references expose NFS and NFS41 as separate datastore types. That alone is a useful signal: NFS v3 and NFS 4.1 should not be treated as interchangeable labels.

At a practical level:

NFS v3 is the more familiar choice in many environments
NFS 4.1 introduces different protocol behavior and operational considerations

The important operational takeaway is that protocol selection has real runtime impact. Broadcom KB 416172 shows that some NFS 4.1 datastores on ESXi 8.x can fail to remount after reboot when network readiness timing is off.

How Does an NFS Datastore Work?

At a high level, the logic is simple:

the ESXi host reaches an NFS server over the network
a specific export path is mounted as a datastore
virtual machine files are stored on that shared path

The critical point is that “the mount succeeded once” is not enough. Correct path syntax, the right server identity, the right vmkernel route, and a consistent cluster-wide mount standard all matter.

Broadcom KB 308081 shows that when you see Unable to connect to NFS server-type errors, the better response is not blind remounting. Teams should validate ping, vmkping, and the actual vmkernel path used for NFS traffic.

What Are the Most Common NFS Datastore Risks?

1. Wrong Export Path Syntax Causes Mount Failure

Broadcom KB 402096 highlights a simple but critical mistake: if the export path is missing the leading /, adding the NFS datastore can fail outright.

That means:

the path should be verified exactly as exported
share names and export paths should not be mixed up
small syntax mistakes can fully block datastore creation

2. Mounting the Same Share Through Different IPs Can Cause Problems

Broadcom KB 318693 says that mounting the same remote NFS share multiple times by using different IP addresses can break HA behavior.

That is a strong design warning. The same storage should not be used through:

one IP on one host
a different IP on another host
multiple inconsistent definitions for the same remote share

An NFS datastore standard must stay consistent across the cluster.

3. The Network Can Look Fine While the Real NFS Path Is Wrong

Broadcom KB 415057 shows that management network connectivity can appear healthy while the actual vmkernel path used for NFS still has VLAN, uplink, or MTU problems.

So it is not enough to say “the server responds to ping.” The vmkernel interface that actually carries NFS traffic must be verified.

4. NFS 4.1 Remount Behavior Needs Separate Attention

Broadcom KB 416172 shows that some NFS 4.1 datastores on ESXi 8.x can become unavailable after reboot because the mount happens before the network path is fully ready.

That means protocol choice should be evaluated against real boot-time behavior, not just feature lists.

When Is an NFS Datastore a Strong Choice?

An NFS datastore is often a strong fit when:

you want a file-based shared-storage operating model
your environment already relies on NAS-style storage
you prefer export-based storage operations over block-LUN handling
multiple cluster hosts need access to the same shared datastore

It is not the only sensible choice, though. If the environment aligns more naturally with block storage and classic SAN operations, VMFS may still be the better fit.

Related guides:

What Are NFS Datastore Best Practices?

1. Validate the Raw Export Path Exactly

Before mounting, confirm the full export path exactly as exported, including the leading /.

2. Use One Mount Standard for the Same Share

Every host in the cluster should mount the same NFS share using the same IP or hostname convention and the same identity model. Mixed definitions create future HA and visibility problems.

3. Prove Which VMkernel Path Carries NFS Traffic

Successful ping alone is not enough. Validate the vmkernel port, VLAN, uplink, and MTU path before trusting datastore behavior.

4. Do Not Roll Out NFS 4.1 Without Testing Reboot Behavior

Especially in ESXi 8.x environments, remount behavior after reboot should be tested before broad production rollout.

5. Stop Treating “Mounted Once” as Success

The real quality bar for NFS datastore operations is not the first mount. It is consistent, repeatable, failure-tolerant behavior across all intended hosts.

First 15-Minute Checklist

The full export path, including the leading /, was verified
One IP or hostname standard for the NFS server was chosen
The same share was confirmed not to be mounted through inconsistent identities
The NFS vmkernel port, VLAN, and uplink path were validated
Ping and vmkping tests were run from the correct path
Reboot remount behavior was tested where needed
A test VM confirmed basic access and file operations

Next Step with LeonX

When standardized properly, NFS datastores can simplify shared-storage operations. When standardized poorly, they create visibility and HA problems that are difficult to unwind later. LeonX helps teams define NFS naming, network path design, mount standards, and cluster governance clearly.

Related pages:

Frequently Asked Questions

What is a VMware NFS datastore?

An NFS datastore is created when ESXi mounts an NFS export over the network and uses it as datastore storage for virtual machine files.

What is the main difference between an NFS datastore and VMFS?

The short answer is that an NFS datastore follows a file-based shared-storage model, while VMFS follows a block-storage model.

What is the most common mistake when adding an NFS datastore?

Broadcom KB 402096 shows that leaving out the leading / in the export path is one of the most common critical mistakes.

Why is mounting the same NFS share through different IPs risky?

Broadcom KB 318693 shows that this can break HA behavior and make the same remote share look like separate datastores in the wrong ways.

Is NFS 4.1 always the better choice?

No. Broadcom KB 416172 shows that some ESXi 8.x environments can see distinct reboot remount risks with NFS 4.1, so protocol choice should be tested rather than assumed.

Conclusion

VMware NFS datastore is a strong and practical option for vSphere environments that want file-based shared storage. In the November 17, 2025 context, the safe approach is to validate export path syntax precisely, keep one consistent mount identity for the same share, prove the vmkernel network path, and test NFS 4.1 behavior before treating it as production-ready.
