For most organizations, asking how a Fortinet firewall works really means asking how FortiGate handles a packet, decides which policy applies, tracks the session statefully, applies NAT and security controls, and determines whether traffic can be accelerated in hardware. The short answer is this: FortiGate makes a route and policy decision on the first packet, tracks the session in its session table, applies NAT and inspection when needed, and offloads eligible traffic to hardware acceleration when the conditions are met.

This guide is especially for:

network and security teams
FortiGate administrators
SOC and operations teams
IT leaders who want to understand firewall behavior as packet flow, not just a list of rules

Key Takeaways

FortiGate works as a stateful firewall, which means it tracks sessions instead of evaluating every packet in isolation.
Fortinet documentation shows that each session is stored in a session table, where teams can see the matched policy number, NAT details, and protocol state.
Firewall policy match is based on Source_interfaces / Protocol / Source_Address / Destination_Address together with the related source-port and dst-port.
Fortinet’s NP7 / NP7lite packet-flow documentation explains that the first packet determines whether the session can be offloaded to the fast path.
If there is no proxy-based UTM/NGFW and the traffic meets the requirements, many sessions can be hardware-offloaded.
For HA, Fortinet’s official active-passive example uses group-id 1, device priority 128+, and heartbeat interfaces ha1 and ha2.

What Does a Fortinet Firewall Actually Do?
Why Is the Stateful Firewall Model So Important?
How Are Policy Match and NAT Decisions Made?
How Do Packet Flow and NP Offload Work?
Why Should HA and Continuity Be Treated as Part of the Same Design?
What Are the Most Common Mistakes?
Related Articles
Checklist
Next Step with LeonX
Frequently Asked Questions
Sources

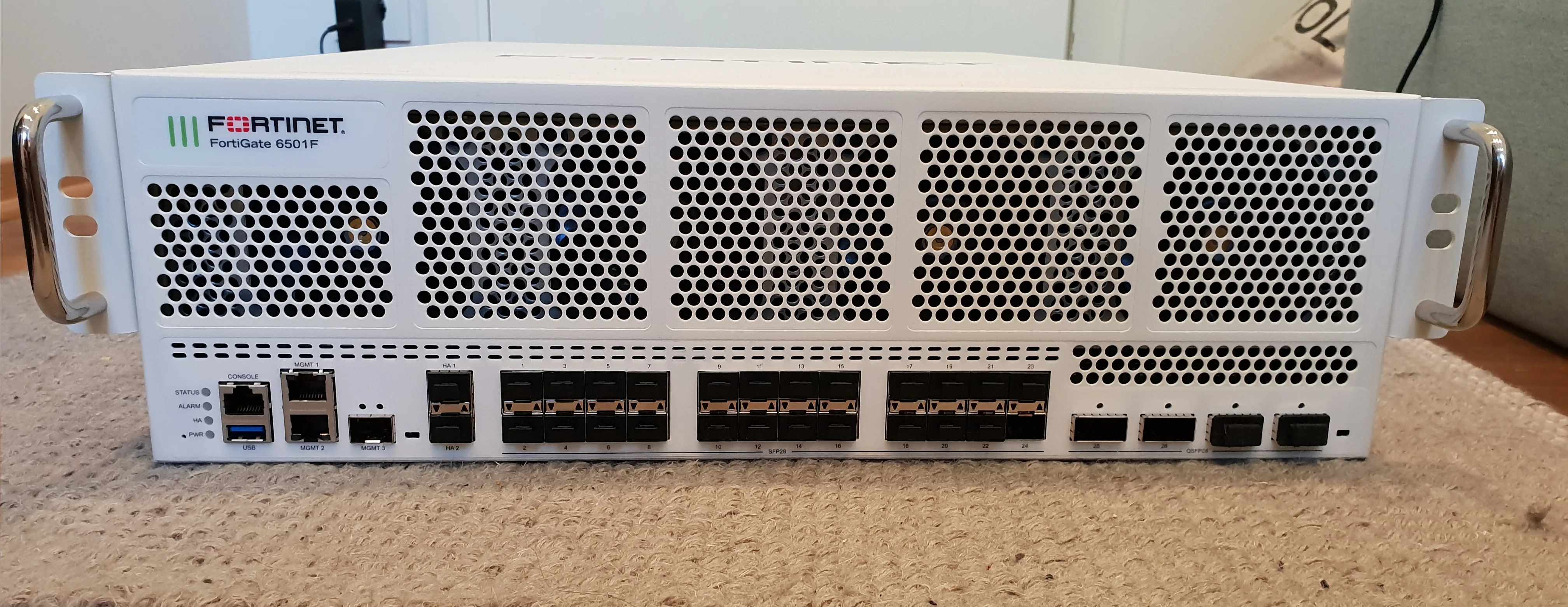

Fortinet firewall behavior image

Image: Wikimedia Commons - Fortinet FortiGate 6501F.

What Does a Fortinet Firewall Actually Do?

In practice, a Fortinet firewall is not only an “allow or block” device. FortiGate evaluates traffic through several layers at once:

route and interface logic
firewall policy match
session creation
NAT behavior
attached UTM or NGFW profiles
hardware acceleration eligibility

That is why understanding FortiGate only from the firewall-policy page is not enough. The real behavior starts with the first-packet decision and continues through the session table.

Fortinet’s session-table documentation makes this clear: each session entry stores more than connection existence. It also exposes which policy matched, what NAT values were used, and what protocol state the firewall sees. In production troubleshooting, fields such as policy id, proto_state, nsrc, and nport matter a great deal.

Why Is the Stateful Firewall Model So Important?

Fortinet’s own administration guide gives the core logic directly: a stateful firewall tracks sessions and only allows packets that conform to the expected session state.

That has several practical consequences:

the first TCP SYN packet is not treated the same way as later packets in the same flow
return traffic does not require a separate manual rule for every reply packet
NAT, traffic shaping, IPS, and logging are all applied in the context of a session

The session-table guide also lists protocol-state handling in detail. For TCP, FortiGate uses a 2-digit proto_state; for UDP, it still tracks whether a reply has been seen even though UDP is commonly described as stateless.

Without that stateful model, teams cannot correctly interpret issues such as:

traffic appears to hit a policy, but the session never stabilizes
NAT is enabled, but the expected translated address is not visible outside
an inspection profile is enabled, but it is not actually affecting the session
HA failover is expected to preserve continuity, but the session behavior changes

How Are Policy Match and NAT Decisions Made?

Fortinet’s firewall-policy documentation defines policy match more precisely than many teams expect. The decision is based on:

Source_interfaces
Protocol
Source_Address
Destination_Address
the related source-port
the related dst-port

That matters because many teams only compare source and destination IPs and assume the policy must be correct. In reality, a mismatch can still come from:

the wrong ingress interface
an incorrect service or port object
a missing route
a transparent-mode limitation

Fortinet also explicitly notes that the required route must already exist when using policy match. That means routing must be checked alongside the policy whenever traffic seems to “match but still not pass.”

NAT analysis follows the same logic. Fortinet’s session-table guide explains that, during troubleshooting from the remote side, the translated source address and port can be validated through nsrc and nport. This is especially important when many internal IP addresses are NATed behind the same external address.

How Do Packet Flow and NP Offload Work?

Fortinet’s Packet flow: first packet of an NP session documentation clarifies the performance model:

the first packet is processed by the CPU
FortiGate evaluates whether the session meets fast-path requirements
if the session qualifies, the session key and configured action are sent to the network processor
later packets can then be handled in hardware

The key point is that not every session is automatically offloaded.

Fortinet explicitly notes that many sessions can be offloaded when:

there is no proxy-based UTM/NGFW
the traffic meets fast-path requirements
the FortiGate includes NP7 or NP7lite

That is why performance reviews should avoid simplistic assumptions such as:

“the firewall is hardware-based, so all traffic is ASIC-accelerated”
“low CPU means the firewall is not the bottleneck”
“inspection can be enabled without affecting packet handling”

The better question is always: which path is this session following, why was it or was it not offloaded, and which inspection setting changed that outcome?

Why Should HA and Continuity Be Treated as Part of the Same Design?

Fortinet’s HA active-passive cluster setup guide documents the official active-passive model. The reference example includes:

mode: Active-Passive
device priority: 128 or higher
group-id: 1
heartbeat interfaces: ha1 and ha2

The same guide also notes that, apart from device priority, the settings must match across cluster members, and that connectivity may be temporarily lost while the cluster negotiates and FGCP changes interface MAC addresses.

This matters because firewall behavior in production is never only about policy logic:

continuity depends on failover design
session behavior depends on HA expectations
heartbeat and monitored interfaces are operational design inputs, not afterthoughts

That is why the service-path design for this topic should be viewed together:

the broad delivery area is Hardware and Software Solutions
deployment and integration live in Router, Switch and Firewall Deployment Service
governance and rule standardization fit under Business Management Services
policy standardization aligns with Network Security Policy Management
project scoping starts through Contact

What Are the Most Common Mistakes?

Treating the firewall like a simple ACL device

FortiGate works through sessions, NAT, inspection, shaping, and HA behavior. Looking only at rule order produces weak diagnosis.

Separating routing from policy analysis

Fortinet explicitly warns that policy match depends on the route already existing. A correct rule is not enough if routing is broken.

Making decisions without the session table

If teams do not inspect the matched policy, NAT values, and protocol state in the session table, they usually miss the real control path.

Ignoring the relationship between inspection and offload

Proxy-based inspection and other security behaviors can change whether traffic stays on the fast path. That changes performance interpretation directly.

Treating HA as a later add-on

If failover design is left to the end, the firewall may appear to work in steady state while continuity remains weak.

Checklist

The incoming interface and required route were validated
Policy match was checked at interface, protocol, address, and port level
The session table was reviewed for policy ID, NAT, and state details
Inspection settings were checked for their impact on offload behavior
HA heartbeat and failover expectations were validated
Router, switch, and firewall behavior were evaluated in one troubleshooting flow

Next Step with LeonX

Understanding Fortinet firewall behavior correctly means handling policy standards, inspection logic, performance, and continuity as one operating model. LeonX supports this through Hardware and Software Solutions, especially Router, Switch and Firewall Deployment Service, together with Business Management Services and Network Security Policy Management. To review your current FortiGate design or request a proposal, continue through the Contact page.

Frequently Asked Questions

What is the shortest practical answer to how a Fortinet firewall works?

FortiGate decides route and policy on the first packet, creates a session, applies NAT and inspection if needed, and offloads eligible traffic to hardware acceleration.

Why is the session table so important?

Because it shows the matched policy, NAT information, and protocol state in one place. It is one of the most useful troubleshooting layers in FortiGate.

Does every FortiGate session go through ASIC acceleration?

No. Fortinet documentation states that the first packet determines whether the session qualifies for fast-path offload. Some inspection modes reduce or prevent offload.

If the firewall policy is correct, does traffic always pass?

No. Missing routes, wrong services, wrong interface direction, or inspection-side effects can still break the flow.

Why is HA part of firewall behavior, not a separate topic?

Because failover, session continuity, and operational uptime directly affect how the firewall behaves in production.
