VMware NIC teaming is the method of using multiple physical NICs under one virtual switching policy to provide redundancy and, in some scenarios, better traffic distribution. The short answer is this: you define uplinks as active, standby, or unused, then apply the right load balancing and failover policy so traffic can survive link loss and, where appropriate, use multiple physical paths more effectively. This guide is written for teams operating in the October 27, 2025 context.
Quick Summary
- Official Broadcom vSphere networking documentation defines teaming and failover policy as the control layer for how uplinks behave inside a port group or distributed port group.
- Broadcom’s official vSphere documentation lists core load balancing approaches such as Route based on originating virtual port, Route based on source MAC hash, Route based on IP hash, and on distributed switches Route based on physical NIC load.
- Broadcom KB 321396 says IP Hash requires appropriate EtherChannel/LACP expectations on the physical switch side and can introduce single-switch dependency in many designs.
- The same KB 321396 says originating virtual port offers simpler physical switch configuration and does not require EtherChannel.
- Official Broadcom teaming settings also include Link status only, Beacon probing, Notify switches, and Failback, which affect not only performance but also failure detection and recovery behavior.
- In the October 27, 2025 context, Broadcom KB 326316 lists vCenter Server 8.0 Update 3g / 8.0.3.00600 / Build 24853646 as one visible current vCenter 8 baseline.
Table of Contents
- What Does NIC Teaming Actually Do?
- Which vCenter Baseline Makes Sense on October 27, 2025?
- What Are Active, Standby, and Unused Uplinks?
- What Is the Difference Between Load Balancing Policies?
- What Do Beacon Probing, Notify Switches, and Failback Do?
- How Do You Configure NIC Teaming?
- Most Common NIC Teaming Mistakes
- Initial Checklist
- Frequently Asked Questions

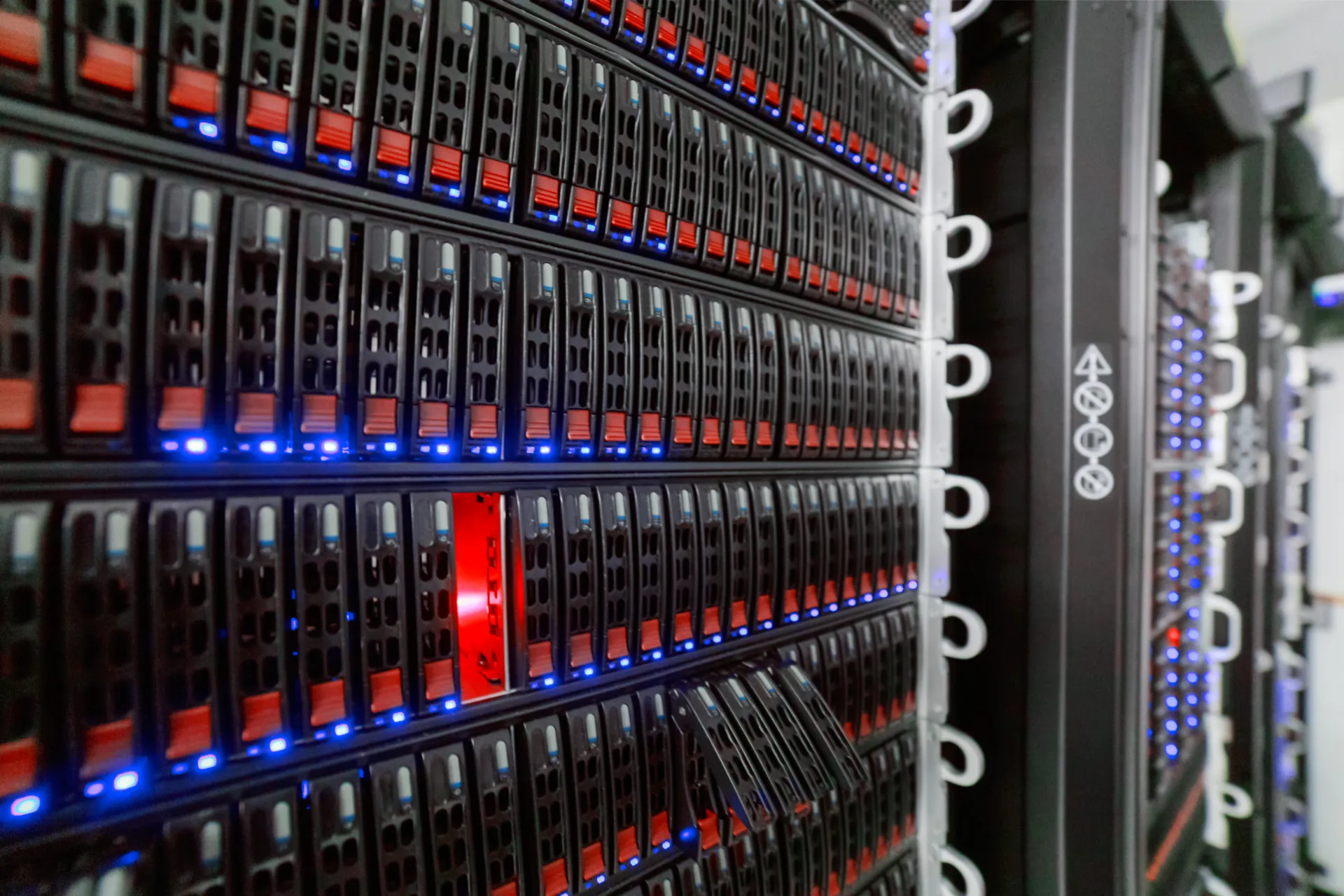

Image: Wikimedia Commons - Cerro Tololo server room (CC BY 4.0).
What Does NIC Teaming Actually Do?
NIC teaming has two main goals:
- redundancy
- in suitable designs, better traffic distribution
If one uplink fails, traffic can continue through another link. In more advanced cases, traffic can also be distributed more intelligently across multiple physical NICs.
But NIC teaming does not automatically mean that total bandwidth is always merged into one simple pool. That depends directly on the selected policy and the physical switch design.
Which vCenter Baseline Makes Sense on October 27, 2025?
Especially when distributed switches and centrally managed teaming policy are involved, the vCenter baseline still matters. According to Broadcom KB 326316, one visible vCenter 8 line in the October 27, 2025 context is:
- Product: vCenter Server 8.0 Update 3g
- Version: 8.0.3.00600
- Release date: 2025-07-29
- Build: 24853646
This guide uses vCenter Server 8.0 Update 3g / Build 24853646 as the operational baseline.
What Are Active, Standby, and Unused Uplinks?
NIC teaming divides uplinks into three logical roles:
- Active: currently carrying traffic
- Standby: ready to take over on failure
- Unused: not used by that specific port group
This allows different traffic types on the same host to use different uplink priorities. For example:
- management port group with
vmnic0 active,vmnic1 standby - vMotion with
vmnic1 active,vmnic0 standby
This kind of asymmetric but controlled design is common and valid.
What Is the Difference Between Load Balancing Policies?
Route Based on Originating Virtual Port
This is one of the most common and simplest approaches. Each virtual port is pinned to a particular uplink. It does not require special physical switch bonding. Broadcom KB 321396 highlights the advantage of simple physical switch configuration here.
Route Based on Source MAC Hash
This chooses uplinks based on source MAC behavior. It can be useful in some scenarios but is not the most common default choice.
Route Based on IP Hash
Broadcom KB 321396 explains that this policy expects static EtherChannel or an appropriate LACP configuration on the physical switch side. Using it without matching switch configuration is a common mistake.
Its practical downside is:
- it often creates a same-switch dependency
- it requires more careful physical design
Route Based on Physical NIC Load
This is available on distributed switch designs and aims to react more intelligently to load conditions. It is usually more meaningful in larger, centrally managed environments.
What Do Beacon Probing, Notify Switches, and Failback Do?
Link Status Only
This is the basic failure detection model. If the physical link goes down, it is treated as a failure.
Beacon Probing
This provides deeper path-failure detection using beacon traffic. It is not mandatory for every environment, but it can help in certain path visibility scenarios.
Notify Switches
After failover, the host can notify the physical switch so its MAC table updates faster. In most production environments, this is useful unless there is a specific reason not to use it.
Failback
This controls whether traffic automatically returns to the original preferred uplink after that uplink recovers. It does not always have to be enabled; some teams prefer more controlled recovery behavior.
How Do You Configure NIC Teaming?
1. Define Traffic Roles First
Start by deciding which policy applies to:
- management
- VM traffic
- vMotion
- storage
Copying the same teaming policy everywhere is usually not the best design.
2. Define Uplink Roles Clearly
For each port group, decide which uplinks are active, standby, or unused.
3. Validate Physical Switch Expectations
Especially if you choose IP Hash, Broadcom KB 321396 says the physical switch must be configured correctly for EtherChannel or LACP. Do not choose that policy before validating the switch side.
4. Test Real Failover Behavior
Do not assume teaming works correctly until you have actually tested link failure and recovery. Notify switches and failback behavior should be observed in a maintenance window or controlled test.
Most Common NIC Teaming Mistakes
Choosing IP Hash without preparing the switch side
This is one of the most common design errors. Broadcom KB 321396 is explicit that IP Hash requires matching EtherChannel or LACP expectations.
Assuming redundancy exists while still depending on one physical switch
Two NICs do not automatically mean two independent paths. Physical topology still matters.
Applying the same teaming policy to every port group
Management, vMotion, and VM traffic often benefit from different uplink behavior. One policy everywhere is rarely optimal.
Never testing failback behavior
You should know how traffic behaves when a failed uplink returns before declaring the design complete.
Initial Checklist
- Traffic roles were defined per port group
- Active / standby / unused uplinks were assigned deliberately
- The selected load balancing policy matches the physical switch design
- EtherChannel or LACP is validated if IP Hash is used
- Link status only or beacon probing was chosen deliberately
- Notify switches and failback behavior were reviewed
- A failover test window was planned
- The network team agrees with the physical topology assumptions
Next Step with LeonX
NIC teaming is not just about plugging two NICs into a host. It requires consistent uplink topology, correct switch expectations, failover planning, and service-aware traffic policy. LeonX helps teams build safe teaming standards for management, VM, storage, and vMotion networks.
Related pages:
- Hardware & Software Sales
- Managed Services
- Contact
- How to Configure VLANs in VMware
- How Does VMware Network Architecture Work?
Frequently Asked Questions
Does NIC teaming always merge total bandwidth automatically?
Not always. That depends on the selected load balancing policy and the physical switch design.
Why is IP Hash more sensitive than other policies?
Because Broadcom KB 321396 says it expects matching EtherChannel or LACP behavior on the physical switch side.
What is a standby uplink for?
It is the backup path that takes over when the active uplink fails.
Is beacon probing required in every environment?
No. It can be useful, but it is not automatically the best choice everywhere.
Can failback be disabled?
Yes. Some environments prefer not to move traffic back automatically as soon as the original link returns.
Conclusion
VMware NIC teaming delivers strong redundancy and better path control when designed correctly. In the October 27, 2025 context, the right approach is to think in port-group-level policies, validate the physical switch expectation in advance, and treat options like IP Hash, notify switches, and failback as deliberate design choices rather than defaults.
