Teams searching for a Dell PowerMax Architecture Deep Dive usually do not need another marketing summary. They need to understand how node pairs, cache, DMEs, front-end protocols, and disaster-recovery design work together. The short answer is this: PowerMax architecture is built around dual active node pairs, end-to-end NVMe media design, scalable dynamic fabric principles, multi-protocol front-end connectivity, and SRDF-based continuity services. This guide is written for teams that want to evaluate PowerMax as a real enterprise storage architecture, not only as a capacity number.
This guide is especially for:
- IT leaders planning a Dell enterprise storage investment
- datacenter and storage architects
- teams designing high availability and disaster recovery together
- organizations evaluating block, mainframe, file, and container workloads on one platform
Quick Summary
- Dell positions PowerMax 8500 as mission-critical storage with AI-driven performance optimization and scalable dynamic fabric architecture.
- According to the same official product page, PowerMax 8500 scales from
2to16nodes, with up to18 PBeusable capacity and1.8 TBto45 TBof cache. - The System Overview section defines a
3Ubase enclosure with dual active nodes,8IO modules per node pair, and a2Udynamic media enclosure with48NVMe drive slots. - Dell’s VxBlock architecture reference adds that PowerMax 8500 supports up to
8node pairs,384drives, and8active/active file nodes. - Dell SRDF documentation explains that SRDF/Metro Smart DR uses
3arrays and allows either side of the Metro pair to maintain the DR copy.
Table of Contents
- What Does Dell PowerMax Architecture Mean?
- How Should You Read the Node Pair and DME Model?
- Why Do Dynamic Fabric and Front-End Protocols Matter?
- How Do Cache, Scale, and Performance Work Together?
- Where Do SRDF and Smart DR Sit in the Architecture?
- What Are the Most Common Architecture Misreadings?
- Related Articles
- Checklist
- Next Step with LeonX
- Frequently Asked Questions
- Sources

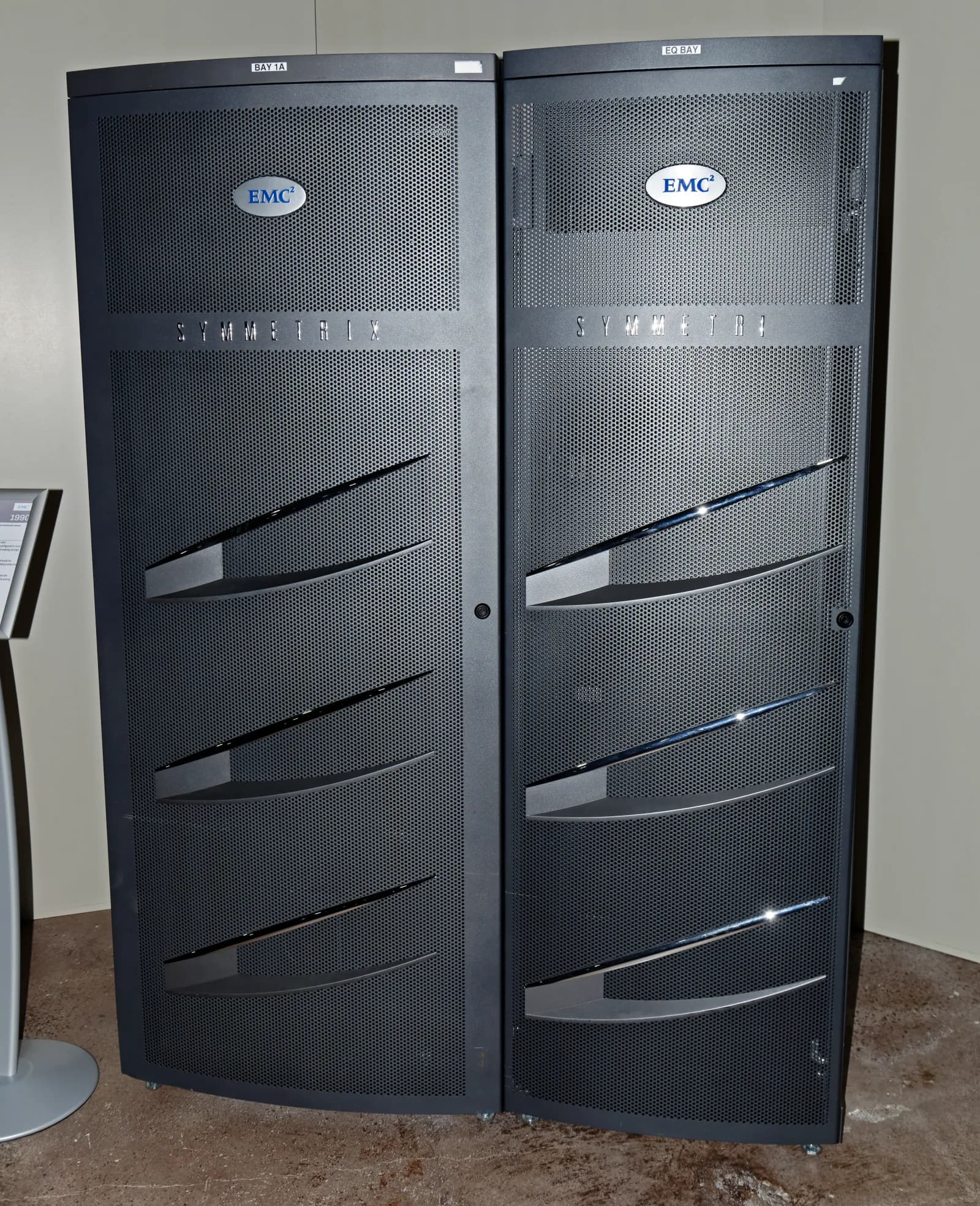

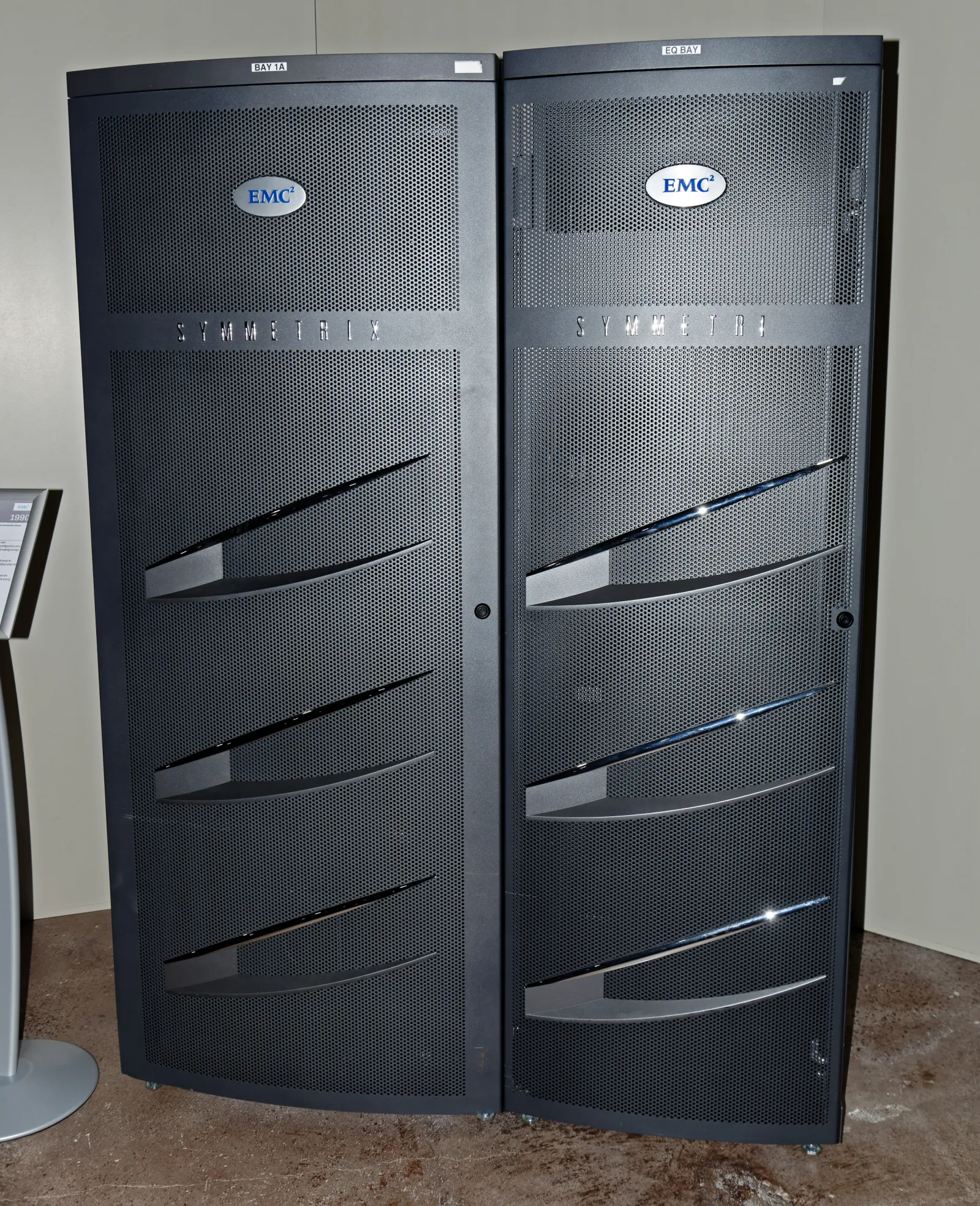

Image: Wikimedia Commons - EMC Symmetrix in Computer Museum of America.
What Does Dell PowerMax Architecture Mean?
PowerMax architecture cannot be reduced to “a very fast all-flash array.” Dell’s official product framing points to a broader design:
- all-flash and end-to-end NVMe media architecture
- dual active node pair structure
- unified support for block, file, mainframe, IBM i, and container-based workloads
- a growth model that combines scale-up and scale-out
That is why a Dell PowerMax Architecture Deep Dive should look beyond one specification table. The physical layout, IO structure, protocol matrix, and business continuity layer all need to be read together. In delivery terms, that usually belongs under Hardware & Software Services, especially NAS / SAN Storage Installation and Configuration.
How Should You Read the Node Pair and DME Model?
Dell’s System Overview section gives the core physical model clearly.
Base enclosure
3Uenclosure- dual active/active nodes
- up to
8node pairs per array 4NVMe SED flash modules per node pair8IO modules per node pair
Expansion enclosure
2Udynamic media enclosure482.5 inNVMe flash drive slots per enclosure- single-drive non-disruptive upgrade model
Dell’s VxBlock architecture reference extends this into a more operational view: PowerMax 8500 supports 1-8 node pairs, up to 384 drives, and bounded DME-to-node ratios. That ratio matters because PowerMax scaling is not just “add more media.” It is about growing node and storage layers without breaking the design balance.
This is also why PowerMax should not be modeled as a simple single-box array. The right architecture discussion is not only “how many terabytes are needed?” but also “which node-pair and IO profile is required?”
Why Do Dynamic Fabric and Front-End Protocols Matter?
Dell describes PowerMax 8500 with scalable dynamic fabric architecture. In practical terms, that means:
- connectivity and service scale can grow with node-pair expansion
- the design is not locked to one storage access pattern
- different enterprise workloads can coexist with more controlled protocol placement
The official product page lists these front-end network protocols:
FCFICONNVMe/FCNVMe/TCPiSCSISRDF
That matrix explains why PowerMax should not be treated as only a legacy SAN array. VMware, mainframe, and modern block workloads can live on one platform through different access models. That is also why Storage Capacity Planning and Performance Optimization should be evaluated together with the base storage design.
How Do Cache, Scale, and Performance Work Together?
Dell’s product page gives PowerMax 8500 a cache range from 1.8 TB to 45 TB. The same page also highlights 3.9 GHz Intel Xeon processing and dense core counts per node pair.
The VxBlock architecture table adds more sizing detail:
- up to
8node pairs on PowerMax 8500 - up to
576cores system-wide in one listed configuration family - up to
28,672 GBcache - up to
20 PBemaximum array capacity
Those numbers show why PowerMax performance should never be reduced to drive count alone. Node-pair design, cache density, IO module layout, and data-reduction assumptions all shape the real operating envelope. For mission-critical workloads, cache and protocol topology belong in the same architecture workshop.
Where Do SRDF and Smart DR Sit in the Architecture?
PowerMax architecture is not only the inside of the primary array. The continuity layer is part of the platform design. Dell’s SRDF documentation makes that explicit.
SRDF/Metro Smart DR fundamentals
- the model uses
3arrays - either side of the Metro pair can maintain the DR copy
- if one side cannot replicate to the DR array, the other side can take over replication
The key takeaway from Dell’s official explanation is that Smart DR is not just standard metro replication. It is a high-availability disaster-recovery design that ties metro behavior and DR behavior together. Dell also documents explicit PowerMaxOS version requirements for this model.
So when teams review a PowerMax architecture deep dive, SRDF should not be treated as an optional appendix. It is part of the platform design itself. This also aligns with the resilience discussion in How Does Dell Storage High Availability Work?.
What Are the Most Common Architecture Misreadings?
Reading PowerMax only as a capacity platform
Many purchasing conversations focus only on PBe numbers. Without node-pair, cache, protocol, and SRDF analysis, the design stays incomplete.
Treating DME expansion as only “more drive slots”
DME expansion does add capacity, but the node-to-media balance still matters for real performance expectations.
Treating SRDF as a separate add-on topic
Metro continuity and DR design are not afterthoughts. In enterprise PowerMax design, they belong in the first architecture model.
Assuming NVMe language is only marketing
Dell explicitly describes PowerMax as end-to-end NVMe. That affects latency expectations, growth strategy, and workload placement.
Sizing file, block, and mainframe workloads with the same logic
Unified support exists, but workload classes do not behave the same way. Protocol placement and service modeling still need to be workload-specific.
Related Articles
- What Is Dell PowerStore Controller Architecture? Guide
- What Is Dell PowerScale? NAS Storage Architecture
- How Does Dell Storage High Availability Work?
- Dell Storage Disk Types and Performance Comparison
Checklist
- node pair, DME, and drive expansion behavior were evaluated together
- front-end protocol selection was separated by workload type
- cache and capacity planning were reviewed in the same design model
- SRDF/Metro Smart DR requirements were evaluated early
- data-reduction assumptions were not confused with real usable capacity
- architecture decisions were translated into proposal and implementation scope
Next Step with LeonX
When Dell PowerMax architecture is misread, organizations either overspend or set the wrong expectations for continuity and protocol behavior. LeonX supports this design under Hardware & Software Services, especially across NAS / SAN Storage Installation and Configuration and Storage Capacity Planning and Performance Optimization. To review your environment or request a proposal, continue through the Contact page.
Frequently Asked Questions
What does a PowerMax node pair mean?
A node pair is the basic processing unit of the platform. Two active nodes together shape IO behavior and cache delivery.
How far can PowerMax 8500 scale?
Dell’s product page states that the system can scale to 16 nodes, which means 8 node pairs.
What is a DME?
DME stands for dynamic media enclosure. It adds NVMe media capacity in a 2U form factor and is central to capacity growth.
Is PowerMax only block storage?
No. Dell’s official product page lists support for block, file, mainframe, IBM i, and container-based workloads.
Why is Smart DR considered an architecture decision?
Because the three-array model, metro behavior, and DR copy control directly change how the storage platform is designed and governed.
