How to Fix FortiGate NAT Issues: Practical Guide (2026)

FortiGate NAT issues usually do not come from a single checkbox. They appear when route, policy, source NAT, destination NAT, IP pool, and session behavior are not read together. The short answer is this: to fix FortiGate NAT problems, first confirm whether traffic matches the expected policy, then determine whether FortiGate applies SNAT or DNAT, and finally verify the translation in the session table.

This guide is written for:

network teams managing internet access, port forwarding, or VIP objects on FortiGate
security teams troubleshooting cases where the policy looks correct but traffic fails
operations teams migrating from Palo Alto, Cisco ASA, or another firewall platform to FortiGate
IT managers who need to prove NAT behavior through logs and session table evidence

Quick Summary

Fortinet’s firewall policy documentation explains that policy match evaluates source interface, protocol, source address, destination address, source port, and destination port together.
Fortinet’s session table documentation shows why nsrc, nport, policy ID, and protocol state matter during NAT troubleshooting.
If Central SNAT is enabled, the NAT option in IPv4 policies is skipped and SNAT is managed through central-snat-map.
When IP pools are used for Dynamic SNAT, FortiGate can select the session source address from a defined pool instead of the outgoing interface address.
A static VIP is destination NAT: a public IP or port is mapped to an internal private IP or port.
A NAT issue cannot be closed by one signal such as "tunnel is up", "policy has hits", or "VIP counter increases"; route, policy, NAT, and return traffic must be validated together.

What Does a FortiGate NAT Issue Mean?
First Diagnosis: SNAT or DNAT?
How Should Policy, Route, and Central NAT Be Checked?
How Do IP Pool and VIP Mistakes Appear?
How Can NAT Be Proven with Session Table and Logs?
Common Mistakes
Implementation Checklist
Related Content
Next Step with LeonX
Frequently Asked Questions
Sources

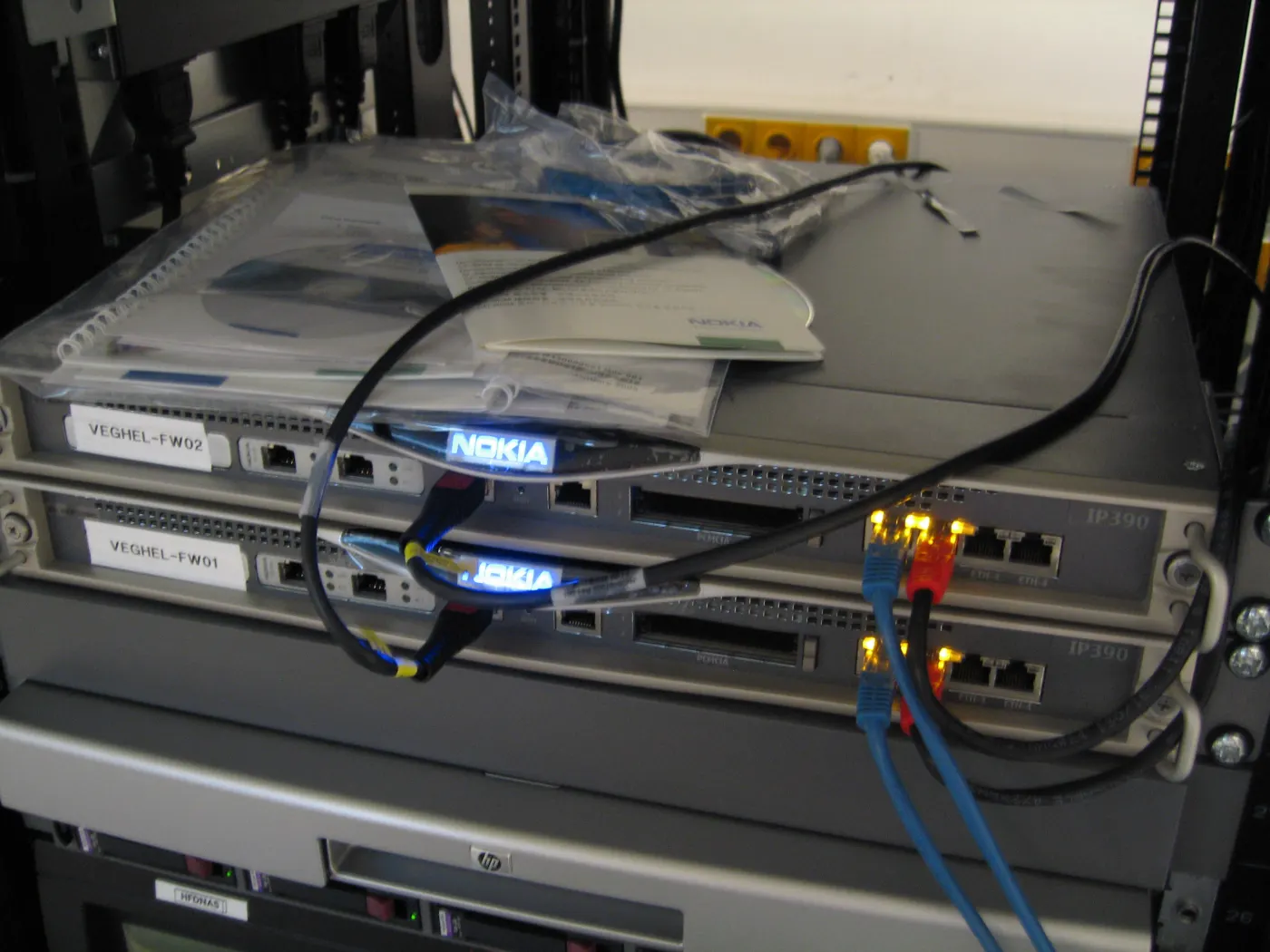

Firewall cluster image for FortiGate NAT troubleshooting

Image: Wikimedia Commons - Firewall cluster.

What Does a FortiGate NAT Issue Mean?

A FortiGate NAT issue means FortiGate is not translating traffic to the expected source or destination IP/port, or the translated traffic does not return to the same session path. It can appear through several symptoms:

internal users cannot reach the internet
internet access works but the wrong public IP is visible
an externally published service is unreachable
VIP hit count increases but traffic does not reach the server
a VPN tunnel is up but translated traffic does not reach the expected peer address
logs show policy hits but sessions do not establish or drop immediately

That makes NAT more than address translation. It is a packet-flow topic involving route, policy, session, and security-profile behavior. For the broader FortiGate packet-flow model, use How Does a Fortinet Firewall Work? FortiGate Packet Flow Guide.

In enterprise environments, NAT troubleshooting directly relates to firewall deployment and support under Hardware & Software Services. The Router, Switch and Firewall Deployment Service is especially relevant because NAT design should be handled together with WAN, routing, and policy standards.

First Diagnosis: SNAT or DNAT?

Before changing NAT settings, separate the type of NAT problem.

NAT type	FortiGate object	Typical scenario	Common symptom
SNAT	policy NAT, central SNAT, IP pool	outbound internet access	wrong public IP, no internet
DNAT	VIP, virtual server, central DNAT	inbound access to an internal server	port forwarding fails
Hairpin NAT	VIP plus internal access	internal clients use public FQDN for internal server	internal users cannot access public name
VPN NAT	IP pool, policy NAT, overlapping subnet	overlapping subnet or third-party VPN	tunnel is up but traffic fails

Without this distinction, troubleshooting often gets worse. Changing SNAT rules will not fix a DNAT/VIP issue. Looking for VIP hit count will not explain an outbound internet SNAT problem.

How Should Policy, Route, and Central NAT Be Checked?

Confirm firewall policy matching

Fortinet’s firewall policy documentation makes clear that FortiGate does not match policy only by source and destination IP. The decision uses:

source interface
protocol
source address
destination address
source port
destination port

The first question is whether the traffic really matches the expected policy. If the ingress interface is wrong, the service object does not match, or a route is missing, NAT can be correct while the traffic still fails.

Policy is not enough without route

Even if FortiGate accepts traffic with a policy, the session will not complete without the correct return path. Check:

does the internal subnet really return to FortiGate as its gateway?
is the public IP pool routed to FortiGate by the upstream device?
does the public IP used by a VIP actually arrive at FortiGate?
is SD-WAN or policy routing sending the traffic through an unexpected WAN?
does the VPN peer know the translated subnet?

The routing and blackhole route discipline in FortiGate Site-to-Site VPN Setup also applies to NAT-heavy VPN designs.

Is Central SNAT enabled?

Fortinet’s Central SNAT documentation makes an important distinction: when Central NAT is enabled, the NAT option under IPv4 policies is skipped and SNAT is handled through central-snat-map. This is one of the most common migration surprises.

Use this workflow:

Check whether Central SNAT is enabled under System > Settings
If enabled, inspect Policy & Objects > Central SNAT
Remember that central SNAT rules match from top to bottom
Review source, destination, interface, protocol, and port together with the policy
If central SNAT is disabled, check NAT and IP pool settings in the firewall policy

This model can be cleaner in multi-WAN, multi-public-IP, or source-group-specific egress designs. But wrong ordering can easily produce the wrong public source IP.

How Do IP Pool and VIP Mistakes Appear?

Dynamic SNAT and IP pools

Fortinet’s Dynamic SNAT documentation explains that an IP pool defines a single address or address range used as the source address for a session. The same documentation describes IPv4 IP pool types including overload, one-to-one, fixed port range, and port block allocation.

Practical implications:

overload IP pools can place many internal IPs behind a smaller set of public IPs
one-to-one IP pools are meaningful when the number of public IPs matches the intended internal mappings
fixed port range and port block allocation provide more controlled port distribution
if the public IP pool is not routed to FortiGate, traffic may disappear upstream
when a single IP pool is used, port consumption and destination concentration should be monitored

Fortinet’s Dynamic SNAT documentation explains an overload example with approximately 60,416 available ports per IP. Treat that as a capacity-planning input for concurrent sessions and traffic concentration, not as a standalone guarantee.

Static VIP and port forwarding

Fortinet’s Static Virtual IPs documentation defines VIP as destination NAT: an external IP address is mapped to an internal IP address. Port forwarding VIPs map specific public ports or port ranges to specific internal ports.

Common mistakes include:

the VIP external IP is not routed to FortiGate
the VIP is correct but the firewall policy destination references the wrong object
Central NAT is enabled and the DNAT screen or policy reference is misread
external port and mapped port are confused
the internal server’s default gateway is not FortiGate
a security profile or local-in behavior blocks traffic at another layer

Fortinet’s port forwarding example shows one public IP mapping ports such as 8080, 8081, and 8082 to different internal web servers. When this design is used, services and logs should be interpreted per port.

How Can NAT Be Proven with Session Table and Logs?

The strongest answer to whether NAT works comes from the session table and logs. Fortinet’s session table documentation shows that session records expose policy, NAT, and protocol-state information.

Use this validation flow:

limit test traffic to one source and one destination
confirm the correct policy ID in policy logs
inspect nsrc, nport, ndst, or destination NAT details in the session table
compare pre-NAT and post-NAT addresses with packet sniffer on ingress and egress interfaces
verify the server’s expected source IP and return gateway
confirm that the upstream device routes the translated public IP to FortiGate

Typical commands include:

diagnose sys session filter clear
diagnose sys session filter src 10.10.10.25
diagnose sys session list
diagnose sniffer packet any 'host 10.10.10.25' 4
diagnose debug flow filter addr 10.10.10.25
diagnose debug flow show function-name enable
diagnose debug flow trace start 20

Use debug commands carefully in production. Broad filters reduce readability and can create unnecessary load on busy devices.

If NAT logs must be reviewed centrally, SIEM and Security Event Management Integration is a natural supporting service.

Common Mistakes

Expecting policy NAT while Central NAT is enabled

If Central SNAT is enabled, the NAT checkbox in the firewall policy is not the right source of truth. The SNAT table must be reviewed separately.

Treating VIP hit count as final proof

VIP counters can show that traffic matched the VIP, but they do not prove that the internal server received traffic or that the return route is correct.

Forgetting the IP pool route

It is not enough for FortiGate to use a public IP pool. The upstream router or ISP path must route that public range to FortiGate.

Confusing external and mapped ports

External service port and mapped internal port can be different. Logs and service objects should be read with that distinction in mind.

Solving VPN NAT and internet SNAT with the same rule

VPN NAT, overlapping subnet translation, and internet egress SNAT are different design problems. Forcing them into one rule set makes troubleshooting harder.

Changing rules without reading the session table

Interpreting NAT without a session is weak diagnosis. The session table shows which policy and NAT behavior actually occurred.

Implementation Checklist

the issue was classified as SNAT, DNAT, hairpin NAT, or VPN NAT
ingress and egress interfaces were validated
firewall policy match was checked together with source, destination, service, and route
Central SNAT enabled/disabled state was confirmed
IP pool type and public IP routing were validated
VIP external IP, mapped IP, external port, and mapped port were checked
post-NAT return gateway and peer-side routes were reviewed
policy ID and NAT fields were verified in the session table
pre-NAT and post-NAT addresses were compared with packet sniffer
NAT logs were connected to monitoring or SIEM workflows

Next Step with LeonX

FortiGate NAT issues are not solved by checking the NAT checkbox alone. A correct diagnosis requires WAN design, routes, firewall policies, Central SNAT, VIPs, IP pools, session table evidence, and log analysis to be reviewed together. LeonX supports technical remediation through Hardware & Software Services, especially the Router, Switch and Firewall Deployment Service. For rule standardization and change control, Business Management Services and Network Security Policy Management help keep the design maintainable. To review your environment or request a proposal, continue through the Contact page.

Relevant pages:

Frequently Asked Questions

Where should FortiGate NAT troubleshooting start?

First separate whether the issue is SNAT or DNAT. Then check route, policy, central NAT state, IP pool or VIP objects, and session table evidence together.

If the FortiGate policy is correct, should NAT always work?

No. NAT can still fail because of central SNAT ordering, missing IP pool routing, wrong VIP references, or broken return routes.

Why should I check whether Central NAT is enabled?

Because when Central SNAT is enabled, the NAT option inside IPv4 firewall policies is skipped. Source NAT behavior is then controlled by the central SNAT table.

Does VIP hit count prove that DNAT works?

Not by itself. VIP hit count can show that traffic matched the VIP, but it does not prove that the internal server received the packet, replied correctly, or had the right route.

Why can internet access fail after using an IP pool?

The public IP pool may not be routed to FortiGate, the wrong IP pool type may be selected, or port consumption and route behavior may differ from expectations.
